English — the base of music — bass
Can be installed into a baseboard or kickplate of cabinets. Designed to fit in conventional 2×4 wall cavity with small slot in baseboard or just above. 9" carbon fiber dual voice coil design has large throw capabilities for excellent quick bass response. Can be installed horizontally into toe kick areas under cabinetry for more bass supply into spaces.
Technical Data

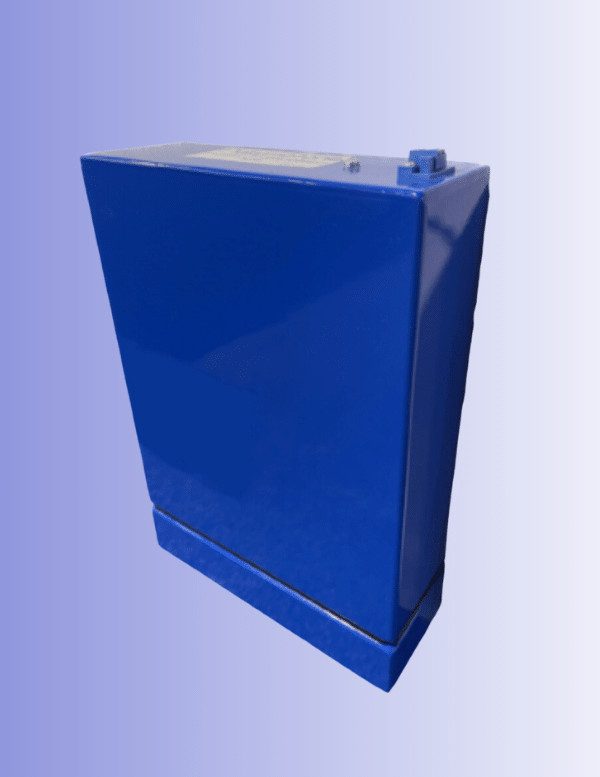

The Base disappears entirely behind a standard baseboard or cabinet kick plate. A 3" × 10" carbon fibre dual voice coil driver reaches down to 29 Hz — genuine sub-bass from the most invisible possible location. Made in Canada.
| Parameter | Value |
|---|---|
| Acoustic Performance | |
| Frequency Response | 29 Hz – 170 Hz (±3 dB) |
| Application | Hidden with Slim Port into Space |
| Port Finish | Port via Baseboard or Cabinet Kick plate |
| Sensitivity | 89 dB @ 2.83 V / 1 m |
| Electrical | |
| Driver | 3" × 10" Carbon Fibre High Performance Driver with Dual VC Neodymium Magnet |
| Nominal Impedance | 6 Ω |
| Power Handling | 150 W RMS (Peak 300 W) |
| Connection Type | Phoenix Connector, accepts 24–12 AWG |
| Physical | |
| Dimensions (H × W × D) | H 265 mm × W 255 mm × D 89 mm / H 14.3" × W 10" × D 3.5" (plus mounting plate) |
| Cut-out Size | 4 × slim ¼" slots by 9½" (part of plate provided) |
| Construction | Fully welded aluminum and rubber isolation |
| Operating Temperature | -15°C to 50°C |
| Installation | |
| Hardware Provided | Isolated plate to connect enclosure to structure. With side firing port (optional horizontal vent for kick plate / under furniture). |
| Wall Cavity Fit | Fits between studs in standard 2×4 wall cavity |
| Mounting Options | Vertical behind baseboard, horizontal in toe kick / under cabinetry |
| Manufacturer | Made in Canada |
| Warranty | 5 Year Replacement Warranty |
Why Base
The Base brings deep, fast bass to any room without a visible enclosure — hidden in the baseboard, kick plate, or toe kick space that every room already has.
3" × 10" carbon fibre cone with dual voice coil neodymium magnet — lightweight and stiff for fast, accurate bass with minimal overhang and excellent transient response.
Disappears completely behind a standard baseboard or cabinet kick plate — the slim port slots integrate into the board itself, leaving no visible hardware whatsoever.
Two independent voice coils allow bridged mono or stereo bass operation — giving installers flexibility for single-amplifier or bi-amplified subwoofer configurations.
Reaches down to 29 Hz for genuine sub-bass — well below most hidden speaker systems and enough for film soundtracks, electronic music, and full-range program material.
Designed precisely to fit between standard studs in a 2×4 wall cavity — no structural modification required, compatible with any standard North American framing.
Can be installed horizontally under cabinetry for bass reinforcement in kitchens, media rooms, and bar areas — the side-firing port option supports under-furniture placement.
Installation
The Base installs in a standard 2×4 wall cavity or toe kick space using the provided isolated mounting plate. The baseboard or kick plate becomes the port — no separate grille or vent needed.
Place the Base in a standard 2×4 wall cavity or horizontally in a toe kick space using the provided isolated mounting plate.
Slim port slots integrate into the baseboard or kick plate; the mounting plate provides the port as part of the installation — no additional routing required.
Install or refit the baseboard or kick plate over the port slots. The driver is completely hidden behind the finished surface.
Wire to your amplifier using the Phoenix connector. Pairs with any Nakymatone panel speaker for full-range invisible audio.
