Dutch — low, deep, bass as it is intended
8" German driver with deep bass response coupled within a band pass tube design to adapt with conventional and custom vents. Ships with fully flush mud to frameless 5" × 5" fine grill. Excellent for ceiling or floor joist mounting as well as deep wall cavities and cabinets. Hidden subwoofer — the port adapts to your existing vent.
Technical Data

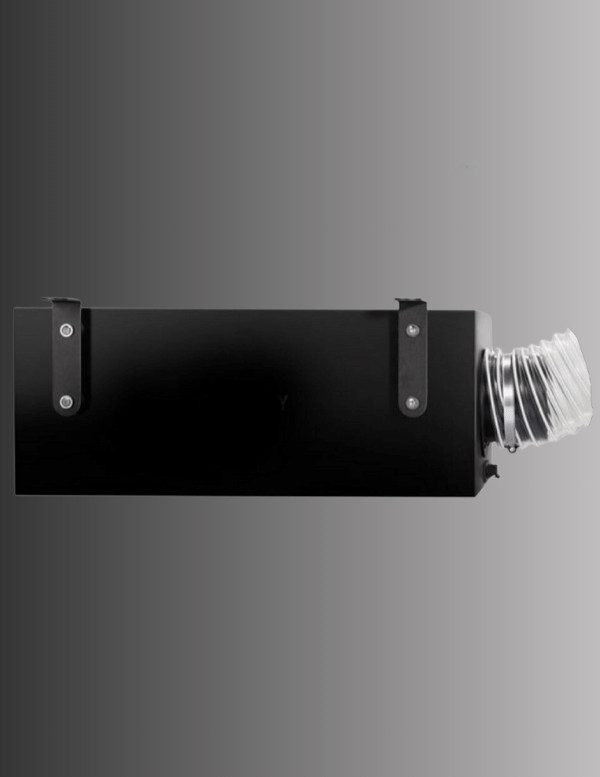

The Laag is a purpose-built hidden subwoofer. A European 8" high-performance driver in a band pass enclosure delivers deep, accurate bass through a port that adapts to standard or custom architectural vents. Made in the Netherlands.
| Parameter | Value |
|---|---|
| Acoustic Performance | |
| Frequency Response | 40 Hz – 117 Hz |
| Application | Hidden with Port into Space |
| Port Finish | Adapts to custom vents (ships with tube connection to standard vent) |
| Sensitivity | 87 dB @ 2.83 V / 1 m |
| Electrical | |
| Driver | 8" European High Performance Driver |
| Nominal Impedance | 8 Ω (minimum 8 Ω) |
| Power Handling | 175 W RMS (Peak 200 W) |
| Connection Type | Speaker posts, accepts 24–12 AWG |
| Physical | |
| Dimensions (H × W × D) | H 20 cm × W 24 cm × D 49 cm (plus tube) |
| Cut-out Size | 10" × 4" Standard Vent |
| Construction | MDF with rubber tube and rubber isolation |
| Operating Temperature | -15°C to 50°C |
| Installation | |
| Hardware Provided | Isolated brackets to connect enclosure to structure. Tube with required hardware to connect with standard vent. |
| Grill | 5" × 5" fine grill, fully flush mud to frameless |
| Mounting Options | Ceiling joist, floor joist, deep wall cavity, cabinet |
| Manufacturer | Made in the Netherlands |
| Warranty | 5 Year Replacement Warranty |
Why Laag
The Laag brings genuine subwoofer performance to invisible audio installations — no visible enclosure, no visible port, no compromise on low-frequency impact.
High-performance driver from the Netherlands delivering deep, accurate bass — built for the long throw excursion required by true subwoofer reproduction.
Tuned band pass tube maximises bass output while keeping the enclosure completely hidden. The design filters the response for clean, controlled low-frequency output.
Ships with a standard vent tube that connects to any 10" × 4" residential vent. Adapts to custom architectural vents for a truly invisible installation that matches your interior.
Mounts in ceiling joists, floor joists, deep wall cavities, and cabinets using the provided isolated brackets — versatile placement for any architectural situation.
Rubber-mounted enclosure and tube prevent structural vibration transmission to the building fabric — deep bass without resonance creeping into walls or floors.
Ships with a 5" × 5" fine grill that sits fully flush with plaster or drywall — the only visible element is a discreet grille that blends seamlessly into the finished surface.
Installation
The Laag installs in any joist cavity or deep wall space using the provided hardware. The band pass tube routes to your chosen vent location — standard or custom — for an entirely invisible subwoofer system.
Secure the Laag enclosure to joists or structure using the provided isolated brackets in the ceiling, floor, or wall cavity.
Run the band pass tube from the enclosure to your chosen vent location — standard vent or custom architectural vent.
Install the provided vent grill or adapt to a custom vent that matches your interior. The enclosure remains completely out of sight.
Wire to your subwoofer amplifier output. Pair with any Nakymatone panel speaker for a complete invisible system.
