Dutch — beautiful, elegant, clean
Stitch welded aluminum enclosure, powder coated. Adjustments to PCB and the mass of magnet drivers adjusted to meet price point and maintain CRT characteristics. Refined acoustic performance — delivers warm, natural sound from within your ceiling or wall, completely undetected by the eye.
Technical Data

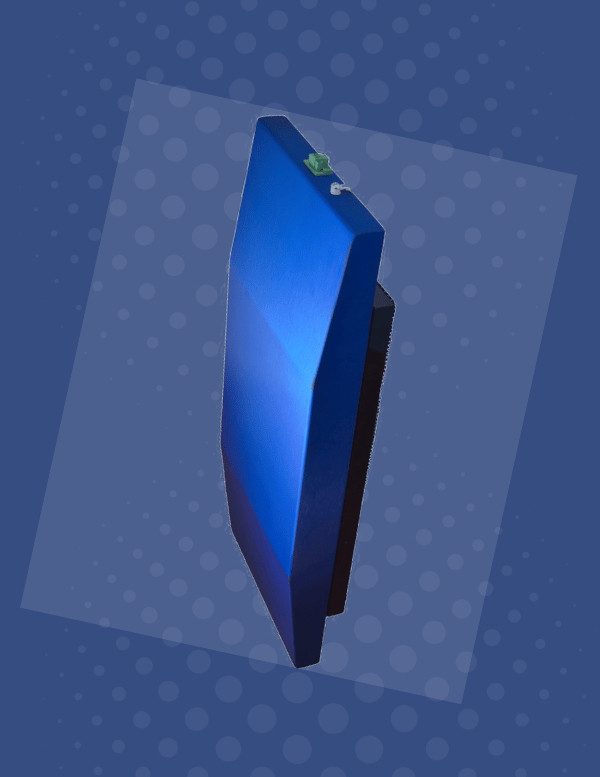

The Mooi delivers refined acoustic performance in a precision-built aluminum enclosure. CRT technology at a considered price point — every unit manufactured and tested in Canada.
| Parameter | Value |
|---|---|
| Acoustic Performance | |
| Frequency Response | 75 Hz – 20 kHz (±3 dB) |
| Full Spectrum | Within 2 dB |
| Dispersion Angle | 180° × 180° (H × V) |
| Sensitivity | 86 dB @ 1 m / 1 W (with 2 mm plaster skim) |
| Maximum SPL | 105 dB @ 1 m / 80 W (with 2 mm plaster skim) |
| Electrical | |
| Nominal Impedance | 8 Ω (minimum 8 Ω) |
| Power Handling | 80 W Maximum (overload protection built-in) |
| Filtering & Protection | Overload protection and HPF built-in |
| Connection Type | Phoenix, screw-in, accepts 24–12 AWG |
| Physical | |
| Dimensions (H × W × D) | 581 × 245 × 79 mm / 23" × 9¾" × 3½" |
| Cut-out Size (W × H) | 9¾" × 16⅝" |
| Weight | 4,350 g |
| Construction | Aluminum honeycomb core, doped paper skin, composite acoustic panel |
| Enclosure | Acoustically tuned aluminum enclosure (stitch welded, powder coated) |
| Operating Temperature | -15°C to 50°C |
| Installation | |
| Wall Thickness | 3⁄8" to 1" drywall board |
| Compatible Accessories | Pre Mount Kit |
| Manufacturer | Nakymatone — Made in Canada |
| Warranty | 10 Year Replacement Warranty |
| Patent | Patent Pending |
Why Mooi
The Mooi brings Nakymatone's Controlled Resonance Technology to a wider audience — without compromise on the experience that makes invisible audio transformative.
Precision stitch welded aluminum enclosure with powder coat finish — built for durability and consistent acoustic performance across every installation.
The same Controlled Resonance Technology as the flagship Echt. The entire panel surface resonates as one coherent radiator — no cone, no grille, no compromise.
Full-sphere sound dispersion fills every corner of the room equally. No sweet spots, no dead zones — consistent audio for every listener in every seat.
75 Hz to 20 kHz within ±3 dB — complete audio reproduction from a single invisible panel with no separate tweeter required.
Installs behind plaster, drywall, or tile. Once finished, the surface gives nothing away — no grilles, no cutouts, no visible hardware of any kind.
Every Mooi panel is built in Canada and backed by a 10-year replacement warranty. Consistent quality, individually tested before dispatch.
Installation
The Mooi installs in four steps and is compatible with the Pre Mount Kit for rough-in during construction. Any qualified contractor can complete the job — no specialist audio labour required.
Use the Pre Mount Kit to position the frame during the build phase, before plastering or tiling begins.
Plaster, tile, or drywall over the panel as normal. Any rigid surface finish is compatible.
Wire to any standard amplifier output. The Mooi presents an 8 Ω load — compatible with all professional and consumer amplifiers.
No grilles. No cutouts. No visible hardware. The wall or ceiling IS the speaker.
