Finnish — see — ironically invisible when installed
Designed to fit tight joist and stud spaces down to 8⅜" in width and less than 2" in depth. The ideal solution for wafer condo walls and ceilings, trussing systems, and any space where depth is at a premium. Our namesake model: balanced, versatile, and exceptionally musical.
Technical Data

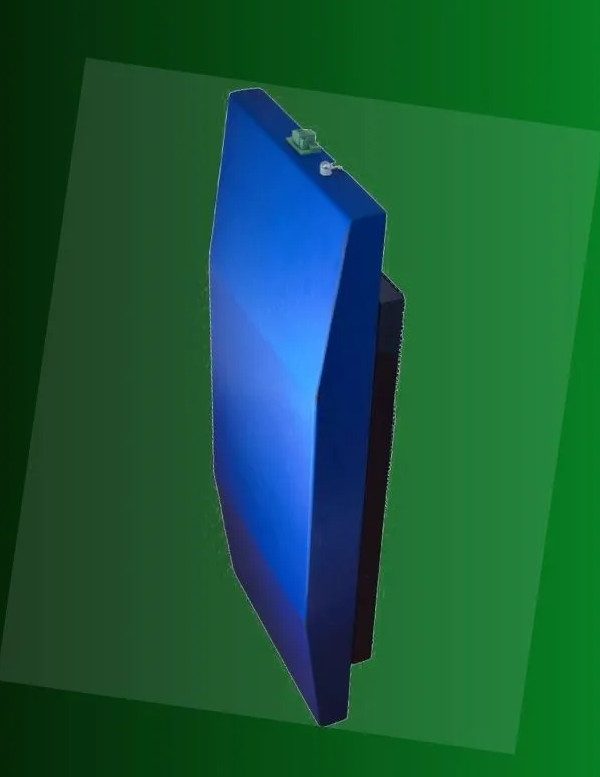

At just 57 mm deep, the Naky goes where no other invisible speaker can. Same Nakymatone performance, fraction of the profile — built in Canada and individually tested before dispatch.
| Parameter | Value |
|---|---|
| Acoustic Performance | |
| Frequency Response | 95 Hz – 20 kHz (±3 dB) |
| Full Spectrum | Within 2 dB |
| Dispersion Angle | 180° × 180° (H × V) |
| Sensitivity | 86 dB @ 1 m / 1 W (with 2 mm plaster skim) |
| Maximum SPL | 102 dB @ 1 m / 80 W (with 2 mm plaster skim) |
| Electrical | |
| Nominal Impedance | 8 Ω (minimum 8 Ω) |
| Power Handling | 40 W Maximum (overload protection built-in) |
| Filtering & Protection | Overload protection and HPF built-in |
| Connection Type | Crimp, accepts 24–12 AWG |
| Physical | |
| Dimensions (H × W × D) | 581 × 245 × 57 mm / 23" × 9¾" × 2¼" |
| Cut-out Size (W × H) | 9¾" (8⅜" back box) × 16⅝" |
| Weight | 2,650 g |
| Construction | Aluminum honeycomb core, doped paper skin, composite acoustic panel |
| Enclosure | Acoustically tuned anodized aluminum enclosure |
| Operating Temperature | -15°C to 50°C |
| Installation | |
| Wall Thickness | ½" to ⅝" thick drywall board |
| Hardware Provided | All hardware required for installation (optional install handle) |
| Compatible Accessories | Pre Mount Kit, XStrap, XRing, XLocator |
| Manufacturer | Nakymatone — Made in Canada |
| Warranty | 10 Year Replacement Warranty |
| Patent | Patent Pending |
Why Naky
The Naky was built for the installations others cannot accommodate — ultra-slim walls, shallow ceilings, and tight trussing systems where every millimetre counts.
At just 57 mm (2¼") deep, the Naky fits where no other panel can. A full-performance invisible speaker designed for the spaces that demand the absolute minimum depth.
Fits joist and stud spaces down to 8⅜" wide and less than 2½" deep. Designed specifically for the constraints of modern lightweight construction.
Designed specifically for modern high-density construction with shallow wall cavities less than 2.5" in depth — the audio solution for contemporary urban builds.
Full-sphere sound from an incredibly compact package. The Naky delivers the same wide, enveloping coverage as every panel in the Nakymatone range.
Same premium anodized aluminum enclosure finish as the flagship Echt. Slim profile, uncompromised build quality — the Naky is engineered to the same standard as every panel we make.
10-year replacement warranty, Made in Canada. Every Naky is individually tested before leaving our facility — no batch sampling, no exceptions.
Installation
The Naky is specifically designed for tight spaces — it fits standard 2×4 stud cavities and trussing systems less than 9" wide. The same four-step installation process, optimised for the most constrained environments.
Use the Pre Mount Kit to position the Naky frame during the build phase. Its 57 mm depth fits cavities that rule out every other panel.
Plaster or drywall over the panel as normal. The Naky accommodates ½" to ⅝" drywall board — standard in high-density residential construction.
Wire to any standard amplifier output using the crimp connector. The Naky presents an 8 Ω load — compatible with all professional and consumer amplifiers.
No grilles. No cutouts. No visible hardware. Full-range audio — from a wall cavity barely wider than your hand.
