Dutch — true, authentic

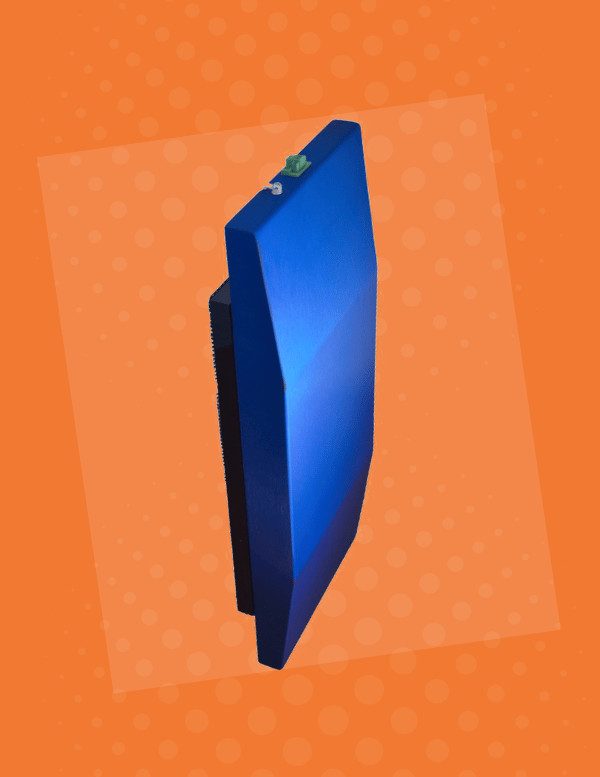

Our flagship panel. Aluminium honeycomb core with doped paper skin in an acoustically tuned anodised aluminium enclosure. Audiophile performance behind any plaster or tile surface.
Technical Data
The Echt is engineered to the highest tolerances in our Canadian manufacturing facility. Every panel is individually tested before dispatch.
| Parameter | Value |
|---|---|
| Acoustic Performance | |
| Frequency Response | 60 Hz – 20 kHz (±3 dB) |
| Full Spectrum | Within 2 dB |
| Dispersion Angle | 180° × 180° (H × V) |
| Sensitivity | 87 dB @ 1 m / 1 W (with 2 mm plaster skim) |
| Maximum SPL | 106 dB @ 1 m / 80 W (with 2 mm plaster skim) |
| Electrical | |
| Nominal Impedance | 8 Ω (minimum 8 Ω) |
| Power Handling | 80 W Maximum (overload protection built-in) |
| Filtering & Protection | Overload protection and HPF built-in |
| Connection Type | Phoenix, screw-in, accepts 24–12 AWG |
| Physical | |
| Dimensions (H × W × D) | 581 × 245 × 79 mm / 23" × 9¾" × 3½" |
| Cut-out Size (W × H) | 9¾" × 16⅝" |
| Weight | 4,350 g |
| Construction | Aluminum honeycomb core, doped paper skin, composite acoustic panel |
| Enclosure | Acoustically tuned anodized aluminum (fully welded, polished & anodized) |
| Operating Temperature | -15°C to 50°C |
| Installation | |
| Wall Thickness | 3⁄8" to 1" drywall board |
| Hardware Provided | All hardware required for installation (optional install handle) |
| Compatible Accessories | Pre Mount Kit, XStrap, XRing, XLocator |
| Manufacturer | Nakymatone — Made in Canada |
| Warranty | 10 Year Replacement Warranty |
| Patent | Patent Pending |
Why Echt
Every design decision in the Echt prioritises acoustic truth — the same performance you'd expect from a reference monitor, concealed within your architecture.
The rigid honeycomb structure ensures the entire panel resonates as a single coherent surface, eliminating the colouration introduced by conventional cone drivers.
60 Hz to 20 kHz within ±3 dB — no separate tweeter required. The Echt delivers complete, coherent audio from a single invisible panel.
Installs behind plaster, drywall, tile, or any rigid architectural surface. Once finished, it is completely undetectable — no grilles, no cutouts.
Full-sphere sound dispersion eliminates listening sweet spots. Every seat in the room receives the same quality of audio — a genuine first in speaker design.
Every Echt panel is built in our Canadian facility and individually tested to specification before leaving the factory. No batch sampling — every unit certified.
Patented Controlled Resonance Technology — the entire surface becomes the speaker. No moving parts, no cone, no voice coil subject to mechanical wear.
Installation
The Echt is designed to be installed by any qualified contractor. The Pre Mount Kit enables rough-in during construction — no specialist labour required.
Use the Pre Mount Kit to position the frame during the build phase, before plastering or tiling begins.
Plaster, tile, or drywall over the panel as normal. The surface finish can be any rigid material.
Wire to any standard amplifier output. The Echt presents an 8 Ω load — compatible with all professional and consumer amplifiers.
No grilles. No cutouts. No visible hardware. The wall or ceiling IS the speaker.
